Graph

The optional graph plugin provides a Cytoscape-based visualization of relationships for datasets, groups, and organizations.

Enable the graph plugin

Enable the base relationship plugin together with relationship_graph:

ckan.plugins = ... relationship relationship_graph scheming_datasets ...

If you want the graph snippet to appear on scheming dataset pages, keep relationship_graph before scheming_datasets so its template override wins.

Where it appears

The graph can always be embedded manually with the reusable snippet.

When the plugin is enabled and the dataset type has relationship-backed fields, the graph can also be rendered automatically as a separate section on the dataset page.

It is not rendered inside the additional_info metadata table.

Automatic insertion on dataset read pages is controlled by ckanext.relationship.show_relationship_graph_on_dataset_read, which defaults to true.

Automatic insertion on group About pages is controlled by ckanext.relationship.show_relationship_graph_on_group_about, which defaults to true. Automatic insertion on organization About pages is controlled by ckanext.relationship.show_relationship_graph_on_organization_about, which also defaults to true. The section is shown only if the current group or organization has at least one relationship.

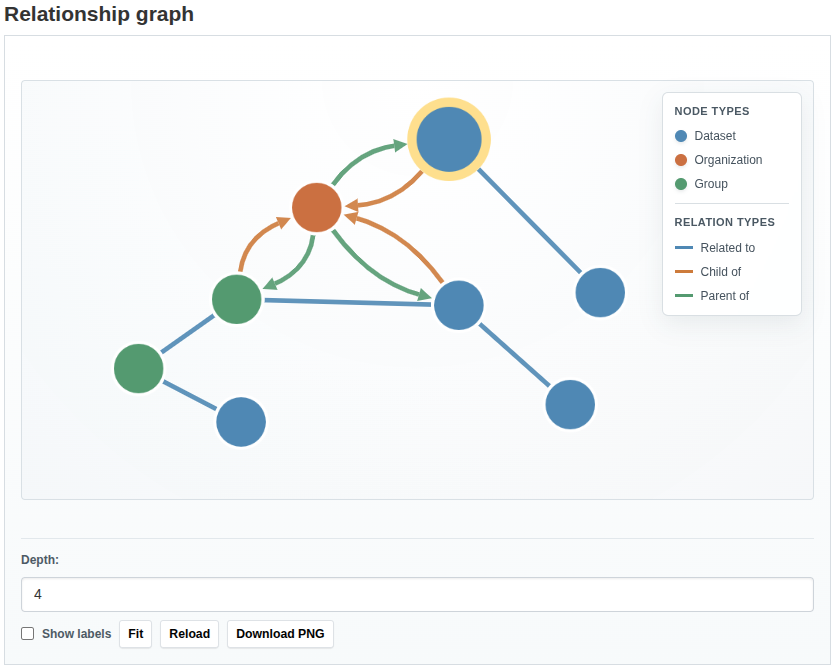

Relationship graph snippet

Graph snippet

The reusable snippet is:

relationship_graph/snippets/graph.html

Use this snippet when you want to embed the graph manually in a custom template.

Example:

{% snippet 'relationship_graph/snippets/graph.html',
    object_id=pkg.id,
    object_entity='package',
    object_type=pkg.type,
    depth=2,
    max_nodes=80,
    relation_types=['related_to'],
    height='420px' %}

Supported parameters:

  • object_id (required)
  • object_entity (default package)
  • object_type (default dataset)
  • depth (default 1)
  • max_nodes (default 100)
  • relation_types (optional list)
  • height (default 500px)
  • show_controls (default true)
  • show_labels (default false)
  • layout (default cose)
  • include_unresolved (default true)

Visualization behavior

  • datasets, organizations, and groups use different node colors
  • node types are shown in the legend with circular color markers
  • self-reversing relation types such as related_to are rendered as a single undirected edge between two nodes
  • asymmetric relation types such as child_of and parent_of are rendered as directed edges
  • relation types are distinguished by color and shown in the legend with line markers
  • custom relation types can provide their own legend label and edge color via ckanext.relationship.interfaces.IRelationship.get_relationship_type_metadata()
  • custom relation types without explicit UI metadata use a generic fallback label and edge color
  • relation labels are shown on hover, not as permanent edge text
  • node labels can be toggled on and off
  • the current object is visually highlighted

Controls

When controls are enabled, the snippet provides:

  • depth selection
  • fit and reload actions
  • PNG download of the current graph
  • a label visibility toggle

API

The plugin also registers:

  • the relationship_graph action
  • the /api/2/util/relationships/graph JSON endpoint

See Actions and API for the full request and response contract.
